KwikSplice - Direct Bury

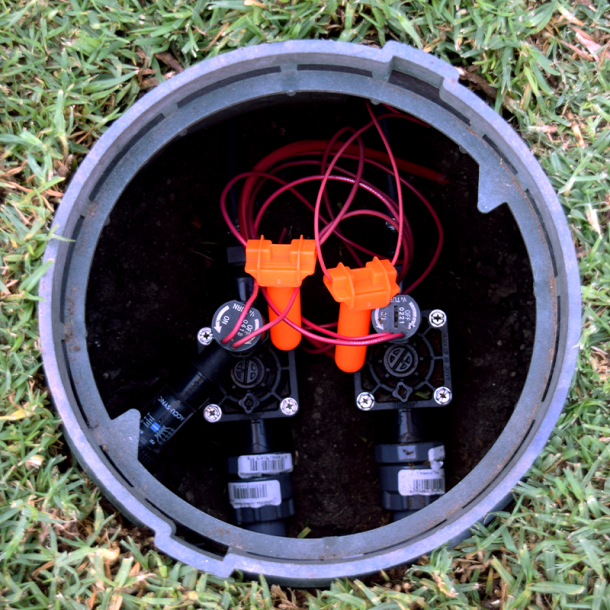

KwikSplice Direct Bury kits offer tool-less installation for secure and protected wire connections.

Kit includes gel, tube, and UL-listed wire connector
Non-melting, dielectric sealant protects against corrosion and maintains voltage
Suitable for multiple wire connections
Environmentally friendly, non-drying GreenPro sealant
High metal affinity
UV-rated for durability

Description	Part Number
Direct Bury Splice 8-12	DBS-812-T
Direct Bury Splice 14-12	DBS-1412-L

Product	Wire Range	Voltage / Wire Type
DBS-1412-L Direct Bury Splice	2-12 #18 Multi-conductor Wire 2-6 #18 SOL or STR 2-5 #16 SOL or STR 4 #14 SOL or STR 3 #12 SOL or STR 2 #14 to 1 #12 SOL or STR 2 #16 to 2 #14 SOL or STR 2 #10 to 1 #12 SOL or STR	Wire Range: 14-12 Voltage: 30 Wire Type: Copper/Copper
DBS-812-T Direct Bury Splice	2-6 #14 Multi-conductor Wire 2-4 #12 SOL or STR 2-4 #10 SOL or STR 2-4 #8 SOL or STR 4 #12 SOL or STR 3 #14 to 1 #12 SOL or STR 2 #10 to 2 #12 & 2 #16 SOL or STR	Wire Range: 8-12 Voltage: 30 Wire Type: Copper/Copper
